Introduction
In the fiercely competitive field of customized paper packaging, double socket boxes (also known as double plug packaging boxes) stand out due to their high versatility, cost-effectiveness, and wide range of applications. This type of box is known for its easy assembly, firm closure, and neat and beautiful appearance, and has become the preferred packaging form for brands in various industries such as beauty, electronics, clothing, and food.
As a Crown Win packaging box manufacturer, we focus on designing and manufacturing high-quality double socket boxes, committed to achieving a perfect balance between structural stability and brand storytelling. In this guide, we will delve into the internal structure, size design logic, and performance of double socket boxes in practical applications, helping you make informed packaging decisions for your product line.
1. What is a dual socket box?
Double socket box is a folding paper box design, characterized by two plug-in flip covers (i.e. sockets) at the top and bottom of the box body. These sockets interlock with the dust-proof baffle on the side, forming a sturdy and adhesive free self-locking structure. Unlike traditional adhesive boxes, double socket boxes do not require any adhesive during assembly - simply fold, insert, and lock to complete.
2. Technical analysis: Structural and dimensional design

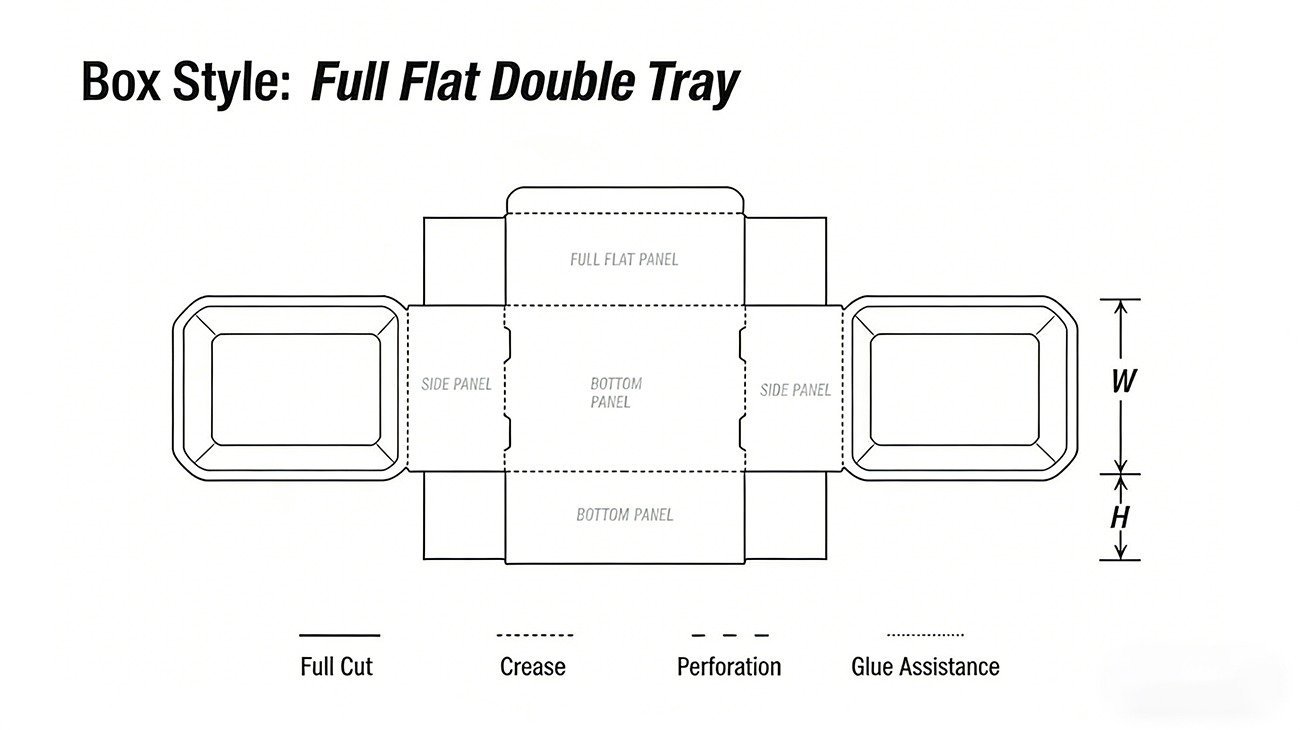

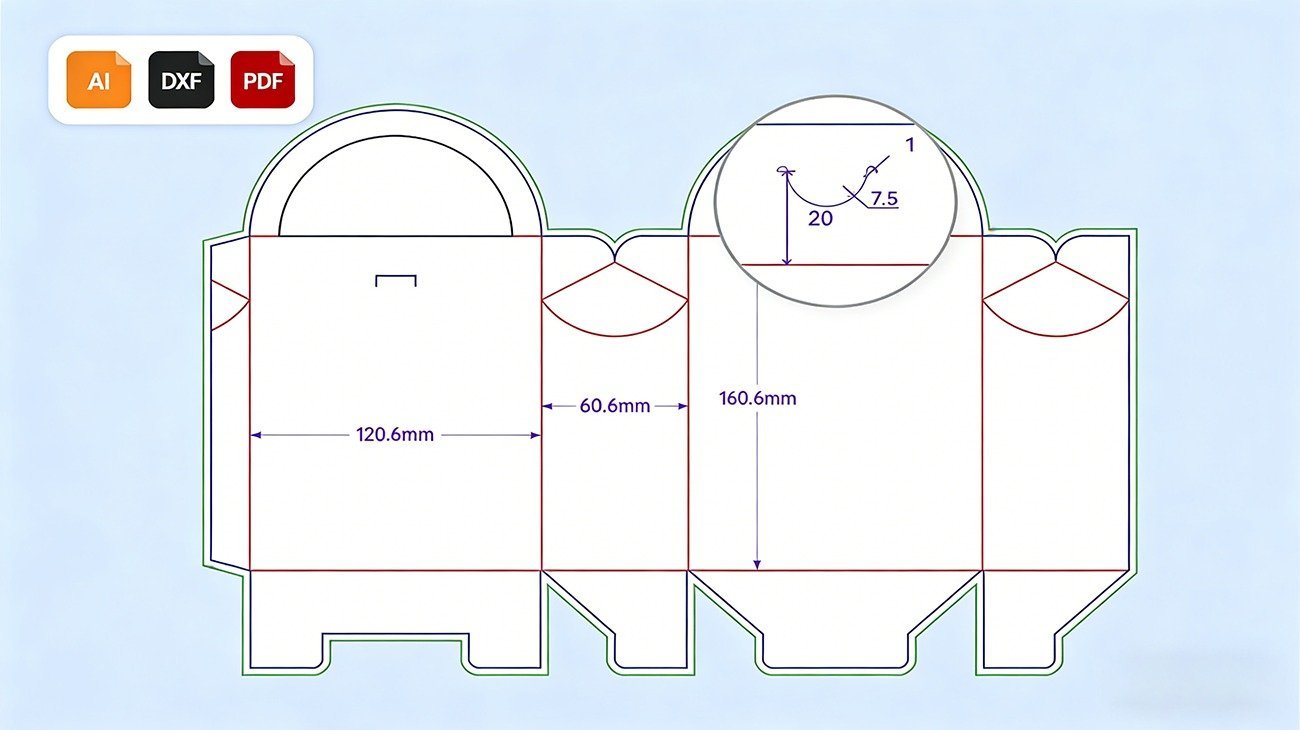

To design a double socket box that perfectly fits the product, you must fully understand the interrelationships between the following three dimensions: internal dimensions (i.e. the actual storage space of the product), manufacturing dimensions (i.e. the size of the die cut unfolded diagram), and external dimensions (i.e. the final size of the finished packaging box).
Size logic:
Internal dimensions (X ₁): The actual available internal space size of the product.
Manufacturing size (X): Die cutting size, taking into account paper thickness (t).
External dimensions (X ₀): The final size of the assembled cardboard box, including the thickness of the cardboard itself.
Key design rules
Lock tongue allowance: The width of the female lock tongue (slot) is always 2mm wider than that of the male lock tongue to ensure a tight fit and prevent loosening.
Dust cover width: The calculation formula is 1/2 (box width+tongue width), aiming to ensure complete coverage of the side opening and prevent dust from entering.
Paper thickness compensation: All sizes are fine tuned according to the paper thickness (t) to avoid gaps or overlaps during folding and assembly.
Finger hole angle: The finger holes on the back panel are designed with a 15 ° inclination angle, which is convenient for users to access the product and also takes into account the structural strength of the paper box.
3. Practical case analysis: Application practice of double socket paper box
At Crown Win Paper Box Manufacturing Plant, we have successfully applied this multifunctional paper box structure to dozens of globally renowned brands.
Here are two highly representative cases:
Case 1: Luxury skincare packaging of a European brand
Challenges faced by customers: a high-end skin care brand needs to design a compact and environmentally friendly packaging for its 50ml facial essence bottle; The packaging should not only create an exquisite and elegant unboxing experience, but also provide reliable protection for the product during transportation.
Our solution: We have designed a matte white double socket paper box, complemented by hot stamping technology and customized embossed (embossed) brand logo. The internal dimensions of the paper box have been precisely calculated to ensure a tight fit and almost no shaking of the bottle body; At the same time, the dust cover and lock tongue design have played a good role in shock absorption and buffering during international transportation.
Result: According to customer feedback, after adopting this packaging, the product's damage rate during transportation decreased by 30%, and positive customer reviews increased by 22%.
Case 2: Environmentally friendly clothing packaging of a certain DTC fashion brand
Customer Challenge: A sustainable fashion startup brand aims to replace plastic bags with paper packaging for T-shirts, with a particular emphasis on packaging recyclability and brand image display.
Our solution: We have designed and manufactured a lightweight double socket paper box made of 100% recyclable kraft paper; The front of the cardboard box has a wide layout for printing customized brand patterns and product information. Thanks to its simple and easy assembly design, the brand's warehouse team has increased efficiency by 40% in handling order packaging work compared to before.
Result: The brand successfully achieved its goal of zero plastic packaging, and due to customers sharing photos of its eco-friendly packaging, the brand's interaction on social media increased by 18%.
Why choose a double socket paper box?
Cost effectiveness: No need for glue, thus shortening the production cycle and reducing material costs.
Widely applicable: Suitable for products of various shapes and sizes, ranging from beauty products to clothing accessories.
Sustainability: Fully recyclable and compatible with various environmentally friendly cardboard materials.
Brand building potential: With a large and flat surface without any breaks, it is very suitable for customized printing, embossing, and various surface treatments. Durability: Its interlocking locking system provides excellent protection during transportation and retail display.
5. Collaborate with Crown Win Box Manufacturer
At Crown Win Box Manufacturer, we are not just manufacturing boxes - we are committed to creating packaging solutions that enhance your brand image. Our team of structural design experts will work closely with you to complete the following tasks:
Optimize the box size based on your product
Select the most ideal cardboard material and surface technology options
Ensure that the packaging complies with international transportation standards
Large scale delivery of high-quality and cost-effective packaging products
Whether you are a startup preparing to launch your first product or a mature brand entering the global market, our Double Tuck End Boxes can perfectly meet your needs.
